Whether for external beam radiation therapy (RT) or brachytherapy, integrating MR imaging into CT‑based planning can harness the power of MRI and transform patient management. With MRI’s excellent soft-tissue contrast, you can clearly see the tumor and organs at risk. So you can support accuracy in delineation and design the best possible treatment plans. Image courtesy of William Beaumont Health System, Detroit, USA
Drive the precision of radiation therapy
Whether for external beam radiation therapy (RT) or brachytherapy, integrating MR imaging into CT‑based planning can harness the power of MRI and transform patient management. With MRI’s excellent soft-tissue contrast, you can clearly see the tumor and organs at risk. So you can support accuracy in delineation and design the best possible treatment plans. Image courtesy of William Beaumont Health System, Detroit, USA
Drive the precision of radiation therapy
Whether for external beam radiation therapy (RT) or brachytherapy, integrating MR imaging into CT‑based planning can harness the power of MRI and transform patient management. With MRI’s excellent soft-tissue contrast, you can clearly see the tumor and organs at risk. So you can support accuracy in delineation and design the best possible treatment plans. Image courtesy of William Beaumont Health System, Detroit, USA
Whether for external beam radiation therapy (RT) or brachytherapy, integrating MR imaging into CT‑based planning can harness the power of MRI and transform patient management. With MRI’s excellent soft-tissue contrast, you can clearly see the tumor and organs at risk. So you can support accuracy in delineation and design the best possible treatment plans. Image courtesy of William Beaumont Health System, Detroit, USA
A superb MRI platform for radiation oncology
A superb MRI platform for radiation oncology
Ingenia MR-RT drives clinical excellence with state-of-the art image quality and high geometric accuracy thanks to dStream architecture, high gradient linearity, and 3D Gradient Distortion Correction. With the state-of-the art next generation Elition 3.0T and Ambition 1.5T wide-bore MR systems, you can benefit from MRI innovations, now and in years to come.
A superb MRI platform for radiation oncology
Ingenia MR-RT drives clinical excellence with state-of-the art image quality and high geometric accuracy thanks to dStream architecture, high gradient linearity, and 3D Gradient Distortion Correction. With the state-of-the art next generation Elition 3.0T and Ambition 1.5T wide-bore MR systems, you can benefit from MRI innovations, now and in years to come.
A superb MRI platform for radiation oncology
Ingenia MR-RT drives clinical excellence with state-of-the art image quality and high geometric accuracy thanks to dStream architecture, high gradient linearity, and 3D Gradient Distortion Correction. With the state-of-the art next generation Elition 3.0T and Ambition 1.5T wide-bore MR systems, you can benefit from MRI innovations, now and in years to come.
Ingenia MR-RT drives clinical excellence with state-of-the art image quality and high geometric accuracy thanks to dStream architecture, high gradient linearity, and 3D Gradient Distortion Correction. With the state-of-the art next generation Elition 3.0T and Ambition 1.5T wide-bore MR systems, you can benefit from MRI innovations, now and in years to come.
Maintain high standards
Maintain high standards
Know you can rely on MRI performance. Evaluate the geometric accuracy in a large field of view with the ready-to-use QA package that includes a phantom and analysis software. Most steps are fully automated, so you can perform routine volumetric evaluations fast and in a repeatable manner. The on-console Pass/Fail analysis provides users with clear guidance on the outcome of the geometric accuracy analysis. The result is user independent and unambiguous.
Maintain high standards
Know you can rely on MRI performance. Evaluate the geometric accuracy in a large field of view with the ready-to-use QA package that includes a phantom and analysis software. Most steps are fully automated, so you can perform routine volumetric evaluations fast and in a repeatable manner. The on-console Pass/Fail analysis provides users with clear guidance on the outcome of the geometric accuracy analysis. The result is user independent and unambiguous.
Maintain high standards
Know you can rely on MRI performance. Evaluate the geometric accuracy in a large field of view with the ready-to-use QA package that includes a phantom and analysis software. Most steps are fully automated, so you can perform routine volumetric evaluations fast and in a repeatable manner. The on-console Pass/Fail analysis provides users with clear guidance on the outcome of the geometric accuracy analysis. The result is user independent and unambiguous.
Know you can rely on MRI performance. Evaluate the geometric accuracy in a large field of view with the ready-to-use QA package that includes a phantom and analysis software. Most steps are fully automated, so you can perform routine volumetric evaluations fast and in a repeatable manner. The on-console Pass/Fail analysis provides users with clear guidance on the outcome of the geometric accuracy analysis. The result is user independent and unambiguous.

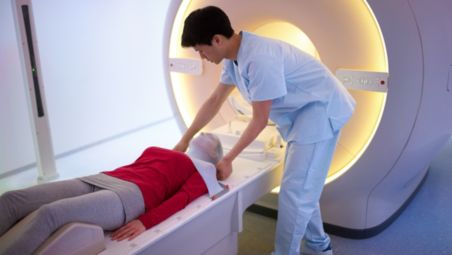

Position with precision
Position with precision
Highly-targeted RT plans rely on reproducible patient positioning in the treatment position. Unique to Philips, the integrated MR-RT CouchTop frees up in-bore space while improving SNR by bringing patients closer to the posterior coil¹.
Complete with indexing, the CouchTop accommodates a variety of MRI-compatible immobilization accessories from main vendors.
Position with precision
Highly-targeted RT plans rely on reproducible patient positioning in the treatment position. Unique to Philips, the integrated MR-RT CouchTop frees up in-bore space while improving SNR by bringing patients closer to the posterior coil¹.
Complete with indexing, the CouchTop accommodates a variety of MRI-compatible immobilization accessories from main vendors.
Position with precision
Highly-targeted RT plans rely on reproducible patient positioning in the treatment position. Unique to Philips, the integrated MR-RT CouchTop frees up in-bore space while improving SNR by bringing patients closer to the posterior coil¹.
Complete with indexing, the CouchTop accommodates a variety of MRI-compatible immobilization accessories from main vendors.
Highly-targeted RT plans rely on reproducible patient positioning in the treatment position. Unique to Philips, the integrated MR-RT CouchTop frees up in-bore space while improving SNR by bringing patients closer to the posterior coil¹.
Complete with indexing, the CouchTop accommodates a variety of MRI-compatible immobilization accessories from main vendors.
Work your way
Work your way
Refine workflows with a system that fits how you work. The optional LAP DORADOnova MR3T laser positioning system supports enhanced MR-CT registration since it allows you to align patients at the MRI scanner. One-click travel-to-scan moves patients directly to the MRI system isocenter after laser alignment, thereby reducing workflow steps
Work your way
Refine workflows with a system that fits how you work. The optional LAP DORADOnova MR3T laser positioning system supports enhanced MR-CT registration since it allows you to align patients at the MRI scanner. One-click travel-to-scan moves patients directly to the MRI system isocenter after laser alignment, thereby reducing workflow steps
Work your way
Refine workflows with a system that fits how you work. The optional LAP DORADOnova MR3T laser positioning system supports enhanced MR-CT registration since it allows you to align patients at the MRI scanner. One-click travel-to-scan moves patients directly to the MRI system isocenter after laser alignment, thereby reducing workflow steps
Refine workflows with a system that fits how you work. The optional LAP DORADOnova MR3T laser positioning system supports enhanced MR-CT registration since it allows you to align patients at the MRI scanner. One-click travel-to-scan moves patients directly to the MRI system isocenter after laser alignment, thereby reducing workflow steps
Set up easily and flexibly
Set up easily and flexibly
The Anterior Coil Support enables easy and flexible coil setup with large bore access and space for patient immobilization. The support can be easily tilted by a single operator to bring the coil close to the patient to optimize SNR without touching the body’s contours.
Set up easily and flexibly
The Anterior Coil Support enables easy and flexible coil setup with large bore access and space for patient immobilization. The support can be easily tilted by a single operator to bring the coil close to the patient to optimize SNR without touching the body’s contours.
Set up easily and flexibly
The Anterior Coil Support enables easy and flexible coil setup with large bore access and space for patient immobilization. The support can be easily tilted by a single operator to bring the coil close to the patient to optimize SNR without touching the body’s contours.
The Anterior Coil Support enables easy and flexible coil setup with large bore access and space for patient immobilization. The support can be easily tilted by a single operator to bring the coil close to the patient to optimize SNR without touching the body’s contours.
MR-linac simulation package for Elekta Unity
MR-linac simulation package for Elekta Unity
The Philips Ingenia MR-RT simulation platform with MR-linac simulation package is an ideal complement to Elekta Unity. With consistent workflows and image quality from MR simulation through to online MR guidance during radiation treatment, it will let you exploit the many similarities and synergies between Philips Ingenia MR-RT and Elekta Unity.
MR-linac simulation package for Elekta Unity
The Philips Ingenia MR-RT simulation platform with MR-linac simulation package is an ideal complement to Elekta Unity. With consistent workflows and image quality from MR simulation through to online MR guidance during radiation treatment, it will let you exploit the many similarities and synergies between Philips Ingenia MR-RT and Elekta Unity.
MR-linac simulation package for Elekta Unity
The Philips Ingenia MR-RT simulation platform with MR-linac simulation package is an ideal complement to Elekta Unity. With consistent workflows and image quality from MR simulation through to online MR guidance during radiation treatment, it will let you exploit the many similarities and synergies between Philips Ingenia MR-RT and Elekta Unity.
The Philips Ingenia MR-RT simulation platform with MR-linac simulation package is an ideal complement to Elekta Unity. With consistent workflows and image quality from MR simulation through to online MR guidance during radiation treatment, it will let you exploit the many similarities and synergies between Philips Ingenia MR-RT and Elekta Unity.
See clearly in treatment planning
See clearly in treatment planning
Enjoy consistent, excellent image quality for multiple anatomies.
Versatile arrangements of dStream coils work together with ExamCards tailored for RT to provide high-contrast images with high geometric fidelity. Quickly execute complete imaging protocols for prostate, female pelvis, brain, head and neck, and spine.
See clearly in treatment planning
Enjoy consistent, excellent image quality for multiple anatomies.
Versatile arrangements of dStream coils work together with ExamCards tailored for RT to provide high-contrast images with high geometric fidelity. Quickly execute complete imaging protocols for prostate, female pelvis, brain, head and neck, and spine.
See clearly in treatment planning
Enjoy consistent, excellent image quality for multiple anatomies.
Versatile arrangements of dStream coils work together with ExamCards tailored for RT to provide high-contrast images with high geometric fidelity. Quickly execute complete imaging protocols for prostate, female pelvis, brain, head and neck, and spine.
Enjoy consistent, excellent image quality for multiple anatomies.
Versatile arrangements of dStream coils work together with ExamCards tailored for RT to provide high-contrast images with high geometric fidelity. Quickly execute complete imaging protocols for prostate, female pelvis, brain, head and neck, and spine.
Learn and share MRI expertise
Learn and share MRI expertise
Successful integration of MR imaging in your workflow starts with people. We offer tailored training to assist your team in streamlining workflows and making full, efficient use of MR imaging from day one.
Learn and share MRI expertise
Successful integration of MR imaging in your workflow starts with people. We offer tailored training to assist your team in streamlining workflows and making full, efficient use of MR imaging from day one.
Learn and share MRI expertise
Successful integration of MR imaging in your workflow starts with people. We offer tailored training to assist your team in streamlining workflows and making full, efficient use of MR imaging from day one.
Successful integration of MR imaging in your workflow starts with people. We offer tailored training to assist your team in streamlining workflows and making full, efficient use of MR imaging from day one.
Whether for external beam radiation therapy (RT) or brachytherapy, integrating MR imaging into CT‑based planning can harness the power of MRI and transform patient management. With MRI’s excellent soft-tissue contrast, you can clearly see the tumor and organs at risk. So you can support accuracy in delineation and design the best possible treatment plans. Image courtesy of William Beaumont Health System, Detroit, USA
Drive the precision of radiation therapy
Whether for external beam radiation therapy (RT) or brachytherapy, integrating MR imaging into CT‑based planning can harness the power of MRI and transform patient management. With MRI’s excellent soft-tissue contrast, you can clearly see the tumor and organs at risk. So you can support accuracy in delineation and design the best possible treatment plans. Image courtesy of William Beaumont Health System, Detroit, USA
Drive the precision of radiation therapy
Whether for external beam radiation therapy (RT) or brachytherapy, integrating MR imaging into CT‑based planning can harness the power of MRI and transform patient management. With MRI’s excellent soft-tissue contrast, you can clearly see the tumor and organs at risk. So you can support accuracy in delineation and design the best possible treatment plans. Image courtesy of William Beaumont Health System, Detroit, USA
Whether for external beam radiation therapy (RT) or brachytherapy, integrating MR imaging into CT‑based planning can harness the power of MRI and transform patient management. With MRI’s excellent soft-tissue contrast, you can clearly see the tumor and organs at risk. So you can support accuracy in delineation and design the best possible treatment plans. Image courtesy of William Beaumont Health System, Detroit, USA
A superb MRI platform for radiation oncology
A superb MRI platform for radiation oncology
Ingenia MR-RT drives clinical excellence with state-of-the art image quality and high geometric accuracy thanks to dStream architecture, high gradient linearity, and 3D Gradient Distortion Correction. With the state-of-the art next generation Elition 3.0T and Ambition 1.5T wide-bore MR systems, you can benefit from MRI innovations, now and in years to come.
A superb MRI platform for radiation oncology
Ingenia MR-RT drives clinical excellence with state-of-the art image quality and high geometric accuracy thanks to dStream architecture, high gradient linearity, and 3D Gradient Distortion Correction. With the state-of-the art next generation Elition 3.0T and Ambition 1.5T wide-bore MR systems, you can benefit from MRI innovations, now and in years to come.
A superb MRI platform for radiation oncology
Ingenia MR-RT drives clinical excellence with state-of-the art image quality and high geometric accuracy thanks to dStream architecture, high gradient linearity, and 3D Gradient Distortion Correction. With the state-of-the art next generation Elition 3.0T and Ambition 1.5T wide-bore MR systems, you can benefit from MRI innovations, now and in years to come.
Ingenia MR-RT drives clinical excellence with state-of-the art image quality and high geometric accuracy thanks to dStream architecture, high gradient linearity, and 3D Gradient Distortion Correction. With the state-of-the art next generation Elition 3.0T and Ambition 1.5T wide-bore MR systems, you can benefit from MRI innovations, now and in years to come.
Maintain high standards
Maintain high standards
Know you can rely on MRI performance. Evaluate the geometric accuracy in a large field of view with the ready-to-use QA package that includes a phantom and analysis software. Most steps are fully automated, so you can perform routine volumetric evaluations fast and in a repeatable manner. The on-console Pass/Fail analysis provides users with clear guidance on the outcome of the geometric accuracy analysis. The result is user independent and unambiguous.
Maintain high standards
Know you can rely on MRI performance. Evaluate the geometric accuracy in a large field of view with the ready-to-use QA package that includes a phantom and analysis software. Most steps are fully automated, so you can perform routine volumetric evaluations fast and in a repeatable manner. The on-console Pass/Fail analysis provides users with clear guidance on the outcome of the geometric accuracy analysis. The result is user independent and unambiguous.
Maintain high standards
Know you can rely on MRI performance. Evaluate the geometric accuracy in a large field of view with the ready-to-use QA package that includes a phantom and analysis software. Most steps are fully automated, so you can perform routine volumetric evaluations fast and in a repeatable manner. The on-console Pass/Fail analysis provides users with clear guidance on the outcome of the geometric accuracy analysis. The result is user independent and unambiguous.
Know you can rely on MRI performance. Evaluate the geometric accuracy in a large field of view with the ready-to-use QA package that includes a phantom and analysis software. Most steps are fully automated, so you can perform routine volumetric evaluations fast and in a repeatable manner. The on-console Pass/Fail analysis provides users with clear guidance on the outcome of the geometric accuracy analysis. The result is user independent and unambiguous.
Position with precision
Position with precision
Highly-targeted RT plans rely on reproducible patient positioning in the treatment position. Unique to Philips, the integrated MR-RT CouchTop frees up in-bore space while improving SNR by bringing patients closer to the posterior coil¹.
Complete with indexing, the CouchTop accommodates a variety of MRI-compatible immobilization accessories from main vendors.
Position with precision
Highly-targeted RT plans rely on reproducible patient positioning in the treatment position. Unique to Philips, the integrated MR-RT CouchTop frees up in-bore space while improving SNR by bringing patients closer to the posterior coil¹.
Complete with indexing, the CouchTop accommodates a variety of MRI-compatible immobilization accessories from main vendors.
Position with precision
Highly-targeted RT plans rely on reproducible patient positioning in the treatment position. Unique to Philips, the integrated MR-RT CouchTop frees up in-bore space while improving SNR by bringing patients closer to the posterior coil¹.
Complete with indexing, the CouchTop accommodates a variety of MRI-compatible immobilization accessories from main vendors.
Highly-targeted RT plans rely on reproducible patient positioning in the treatment position. Unique to Philips, the integrated MR-RT CouchTop frees up in-bore space while improving SNR by bringing patients closer to the posterior coil¹.
Complete with indexing, the CouchTop accommodates a variety of MRI-compatible immobilization accessories from main vendors.
Work your way
Work your way
Refine workflows with a system that fits how you work. The optional LAP DORADOnova MR3T laser positioning system supports enhanced MR-CT registration since it allows you to align patients at the MRI scanner. One-click travel-to-scan moves patients directly to the MRI system isocenter after laser alignment, thereby reducing workflow steps
Work your way
Refine workflows with a system that fits how you work. The optional LAP DORADOnova MR3T laser positioning system supports enhanced MR-CT registration since it allows you to align patients at the MRI scanner. One-click travel-to-scan moves patients directly to the MRI system isocenter after laser alignment, thereby reducing workflow steps
Work your way
Refine workflows with a system that fits how you work. The optional LAP DORADOnova MR3T laser positioning system supports enhanced MR-CT registration since it allows you to align patients at the MRI scanner. One-click travel-to-scan moves patients directly to the MRI system isocenter after laser alignment, thereby reducing workflow steps
Refine workflows with a system that fits how you work. The optional LAP DORADOnova MR3T laser positioning system supports enhanced MR-CT registration since it allows you to align patients at the MRI scanner. One-click travel-to-scan moves patients directly to the MRI system isocenter after laser alignment, thereby reducing workflow steps
Set up easily and flexibly
Set up easily and flexibly
The Anterior Coil Support enables easy and flexible coil setup with large bore access and space for patient immobilization. The support can be easily tilted by a single operator to bring the coil close to the patient to optimize SNR without touching the body’s contours.
Set up easily and flexibly
The Anterior Coil Support enables easy and flexible coil setup with large bore access and space for patient immobilization. The support can be easily tilted by a single operator to bring the coil close to the patient to optimize SNR without touching the body’s contours.
Set up easily and flexibly
The Anterior Coil Support enables easy and flexible coil setup with large bore access and space for patient immobilization. The support can be easily tilted by a single operator to bring the coil close to the patient to optimize SNR without touching the body’s contours.
The Anterior Coil Support enables easy and flexible coil setup with large bore access and space for patient immobilization. The support can be easily tilted by a single operator to bring the coil close to the patient to optimize SNR without touching the body’s contours.
MR-linac simulation package for Elekta Unity
MR-linac simulation package for Elekta Unity
The Philips Ingenia MR-RT simulation platform with MR-linac simulation package is an ideal complement to Elekta Unity. With consistent workflows and image quality from MR simulation through to online MR guidance during radiation treatment, it will let you exploit the many similarities and synergies between Philips Ingenia MR-RT and Elekta Unity.
MR-linac simulation package for Elekta Unity
The Philips Ingenia MR-RT simulation platform with MR-linac simulation package is an ideal complement to Elekta Unity. With consistent workflows and image quality from MR simulation through to online MR guidance during radiation treatment, it will let you exploit the many similarities and synergies between Philips Ingenia MR-RT and Elekta Unity.
MR-linac simulation package for Elekta Unity
The Philips Ingenia MR-RT simulation platform with MR-linac simulation package is an ideal complement to Elekta Unity. With consistent workflows and image quality from MR simulation through to online MR guidance during radiation treatment, it will let you exploit the many similarities and synergies between Philips Ingenia MR-RT and Elekta Unity.
The Philips Ingenia MR-RT simulation platform with MR-linac simulation package is an ideal complement to Elekta Unity. With consistent workflows and image quality from MR simulation through to online MR guidance during radiation treatment, it will let you exploit the many similarities and synergies between Philips Ingenia MR-RT and Elekta Unity.
See clearly in treatment planning
See clearly in treatment planning
Enjoy consistent, excellent image quality for multiple anatomies.
Versatile arrangements of dStream coils work together with ExamCards tailored for RT to provide high-contrast images with high geometric fidelity. Quickly execute complete imaging protocols for prostate, female pelvis, brain, head and neck, and spine.
See clearly in treatment planning
Enjoy consistent, excellent image quality for multiple anatomies.
Versatile arrangements of dStream coils work together with ExamCards tailored for RT to provide high-contrast images with high geometric fidelity. Quickly execute complete imaging protocols for prostate, female pelvis, brain, head and neck, and spine.
See clearly in treatment planning
Enjoy consistent, excellent image quality for multiple anatomies.
Versatile arrangements of dStream coils work together with ExamCards tailored for RT to provide high-contrast images with high geometric fidelity. Quickly execute complete imaging protocols for prostate, female pelvis, brain, head and neck, and spine.
Enjoy consistent, excellent image quality for multiple anatomies.
Versatile arrangements of dStream coils work together with ExamCards tailored for RT to provide high-contrast images with high geometric fidelity. Quickly execute complete imaging protocols for prostate, female pelvis, brain, head and neck, and spine.
Learn and share MRI expertise
Learn and share MRI expertise
Successful integration of MR imaging in your workflow starts with people. We offer tailored training to assist your team in streamlining workflows and making full, efficient use of MR imaging from day one.
Learn and share MRI expertise
Successful integration of MR imaging in your workflow starts with people. We offer tailored training to assist your team in streamlining workflows and making full, efficient use of MR imaging from day one.
Learn and share MRI expertise
Successful integration of MR imaging in your workflow starts with people. We offer tailored training to assist your team in streamlining workflows and making full, efficient use of MR imaging from day one.
Successful integration of MR imaging in your workflow starts with people. We offer tailored training to assist your team in streamlining workflows and making full, efficient use of MR imaging from day one.
MR-only simulation highlight
Today, MR has even more to offer radiation therapy treatment planning. Innovative MR-only simulation by Philips helps you rely on MR as a primary imaging modality for planning the treatment of prostate cancer patients.
Available as a plug-in extension to the Ingenia MR-RT, MR-only sim provides the excellent soft-tissue contrast you trust for target delineation – plus density information for dose calculations. And it’s designed for your workflow. Fast scanning protocols and embedded post-processing steps generate MRCAT (MR for Calculating ATtenuation) images on the MR console in just a few minutes with the density information you’d expect from CT.
Dr. Uulke van der Heide describes MR’s changing role in radiotherapy and a recent collaboration with Philips to bring MR-only simulation for RT planning from the lab to the clinic. The Philips Ingenia MR-RT platform now supports MR-only simulation for planning the treatment of prostate cancer patients.
Dr. Van der Heide is a medical physicist at the Netherlands Cancer Institute in Amsterdam.
FieldStrength
FieldStrength provides regular features and articles on magnetic resonance imaging. It serves as a resource for Philips MRI users to share solutions to their day-to-day challenges in MRI clinical practice.
Flexible arrangements of the FlexCoverage Anterior Coil, Posterior Coil, and FlexCoils) – all with digital architecture – for a wide range of RT applications
Dedicated RT ExamCards for
Brain, head & neck, prostate, female pelvis, general pelvis and spine
MR-RT CouchTop
MR-RT CouchTop
Design
The thin, flat MR-RT CouchTop is a dedicated RT patient table, not an overlay, for imaging patients in the radiation therapy treatment position.
Indexing
14-cm standard
Dimensions
Length: 248 cm; Width: 63 cm to support large patients and freedom in patient positioning
Other accessories
The MR-RT CouchTop accommodates a variety of MR-compatible positioning and immobilization accessories, e.g. thermoplastic masks and baseplates. These can be ordered directly via third party vendors: CIVCO, Orfit, and QFix.
Accessories included
Indexing bar S, indexing bar L, wall mount for storage
Weight
≤12.9
kg
Direct mounting
CouchTop allows direct mounting of Type-S head and head, neck and shoulder masks
Geometric QA analysis package
Geometric QA analysis package
Phantom design
Grid spacing: 25 mm, Phantom holder allows placement of the phantom in three orientations (axial, coronal, sagittal)
QA analysis volume
50 x 45* x 40 cm³ (RL x AP x FH)
*effective, FOV above table: 30 cm
QA Software
Runs from the MR console.
For multi-slice 2D evaluations.
Provides contour map of geometric accuracy in MR image.
Anterior Coil Support
Anterior Coil Support
Coil support design
The spacious, light-weight Anterior Coil Support supports the Anterior Coil and its shape follows the bore dimensions to maximize patient fit. It is height-adjustable and can be tilted to bring the coil close to each individual patient.
Height adjustment range
15-35.5 cm between MR-RT CouchTop and Anterior Coil, adjustable on each side
Optional external laser positioning system
Optional external laser positioning system
Type
LAP DORADOnova MR3T or APOLLO MR3R compatible, green (520nm) or red (638nm) laser
Allowed width range
2.594 - 5.000
m
Laser phantom
LAP Aquarius phantom and phantom holder, ELPS QA Test ExamCard
Flexible arrangements of the FlexCoverage Anterior Coil, Posterior Coil, and FlexCoils) – all with digital architecture – for a wide range of RT applications
Dedicated RT ExamCards for
Brain, head & neck, prostate, female pelvis, general pelvis and spine
MR-RT CouchTop
MR-RT CouchTop
Design
The thin, flat MR-RT CouchTop is a dedicated RT patient table, not an overlay, for imaging patients in the radiation therapy treatment position.
Indexing
14-cm standard
Dimensions
Length: 248 cm; Width: 63 cm to support large patients and freedom in patient positioning
Other accessories
The MR-RT CouchTop accommodates a variety of MR-compatible positioning and immobilization accessories, e.g. thermoplastic masks and baseplates. These can be ordered directly via third party vendors: CIVCO, Orfit, and QFix.
Accessories included
Indexing bar S, indexing bar L, wall mount for storage
Weight
≤12.9
kg
Direct mounting
CouchTop allows direct mounting of Type-S head and head, neck and shoulder masks
Geometric QA analysis package
Geometric QA analysis package
Phantom design
Grid spacing: 25 mm, Phantom holder allows placement of the phantom in three orientations (axial, coronal, sagittal)
QA analysis volume
50 x 45* x 40 cm³ (RL x AP x FH)
*effective, FOV above table: 30 cm
QA Software
Runs from the MR console.
For multi-slice 2D evaluations.
Provides contour map of geometric accuracy in MR image.
Anterior Coil Support
Anterior Coil Support
Coil support design
The spacious, light-weight Anterior Coil Support supports the Anterior Coil and its shape follows the bore dimensions to maximize patient fit. It is height-adjustable and can be tilted to bring the coil close to each individual patient.
Height adjustment range
15-35.5 cm between MR-RT CouchTop and Anterior Coil, adjustable on each side
Optional external laser positioning system
Optional external laser positioning system
Type
LAP DORADOnova MR3T or APOLLO MR3R compatible, green (520nm) or red (638nm) laser
Allowed width range
2.594 - 5.000
m
Laser phantom
LAP Aquarius phantom and phantom holder, ELPS QA Test ExamCard
1. Compared to Philips scans without Compressed SENSE.
2. Compared to the Ingenia 1.5T ZBO magnet.
By clicking on the link, you will be leaving the official Royal Philips ("Philips") website. Any links to third-party websites that may appear on this site are provided only for your convenience and in no way represent any affiliation or endorsement of the information provided on those linked websites. Philips makes no representations or warranties of any kind with regard to any third-party websites or the information contained therein.
You are now exiting the Philips United States (US) site and
entering the Philips global site. This content is intended for a global audience. It may not apply to the
US and should not be interpreted as meeting US standards, executive orders or regulations.
